Barrier pouches are multi-layer flexible packaging designed to protect products from moisture, oxygen, light, odors, and contamination throughout storage and transit. From food and pharmaceuticals to military-grade electronics packaging, the right barrier pouch packaging is determined by the specific protection requirements of the application, the laminate construction, and, in regulated industries, the applicable specification. This guide covers the main types, materials, and selection criteria so you can identify the correct pouch for your needs.
What Are Barrier Pouches?
Barrier pouches are multi-layer laminate flexible packaging in which each layer serves a distinct protective function. A typical construction might combine a polyester (PET) outer layer for puncture resistance, an aluminum foil or metallized film layer for gas and moisture blocking, and a polyethylene (PE) inner layer that provides the heat-sealable surface. Unlike standard poly bags, which offer minimal resistance to moisture vapor and oxygen transmission, barrier pouches are engineered to maintain a controlled internal environment for the life of the product.
Two metrics define the protection level of any barrier pouch:
- MVTR (Moisture Vapor Transmission Rate): Measures how much water vapor passes through the material per square meter per 24 hours. Lower MVTR means better moisture protection. Foil-laminate pouches used in military and long-term storage applications can achieve MVTR values below 0.002 g/m2/24h.
- OTR (Oxygen Transmission Rate): Measures oxygen permeability. Critical for food, pharmaceutical, and any oxygen-sensitive application. Foil laminates provide near-zero OTR; metallized films offer a practical middle ground between barrier performance and cost.
Types of Barrier Pouches
Barrier pouches come in several configurations, each suited to a different set of handling, storage, and sealing requirements. For a detailed breakdown, see our guide on the different types of moisture barrier bags.

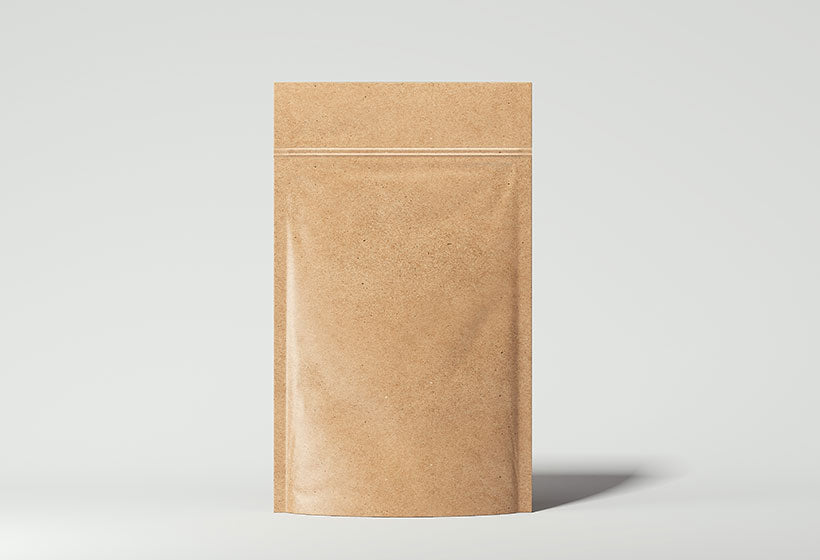

Stand-Up Pouches
Stand-up pouches incorporate a gusseted base that allows the pouch to stand upright on a shelf or work surface. They are widely used in food and beverage applications and are available with resealable zippers or pour spouts. The upright format also makes them practical for retail display.
Flat Barrier Pouches
Flat barrier pouches are the most straightforward configuration: a sealed pouch with no gusset, available in three-side seal or four-side seal variants. They offer a high surface-area-to-volume ratio, making them efficient for flat or low-profile items such as circuit boards, printed materials, and thin mechanical components. Learn more in our guide to flat barrier pouches.
Gusseted Barrier Pouches
Gusseted pouches have side or bottom folds that expand to accommodate bulkier products. They provide more internal volume than flat pouches of the same footprint and are commonly used for industrial components, hardware, and larger food items.
MIL-SPEC Barrier Bags
For military, defense, and aerospace applications, moisture barrier pouches must meet specific military specifications rather than general commercial standards. The three primary specs are:
- MIL-PRF-131: Water-vapor-proof and greaseproof foil-laminate heat-sealable barrier bags for long-term military and aerospace storage.
- MIL-PRF-81705: ESD-shielding barrier bags for electrostatic-sensitive components such as circuit boards and avionics assemblies. Available in Type I (foil/ESD), Type II, and Type III (transparent static-shielding).
- MIL-DTL-117: Defines heat seal integrity and strength requirements for barrier pouches used in military packaging applications.
Need barrier pouches for military, aerospace, or industrial use? Royco stocks MIL-SPEC and standard barrier bags ready to ship.
Barrier Pouch Materials and Laminate Structures
The laminate construction of a barrier pouch determines its MVTR, OTR, puncture resistance, and suitability for specific applications. The table below compares the most common laminate structures used in commercial and military specification barrier bags.
|
Construction |
MVTR (g/m²/24h) |
OTR (cc/m²/24h) |
Barrier Level |
Typical Use |
|
Foil laminate (PET/Al/PE) |
< 0.002 |
< 0.1 |
Excellent |
Long-term military/aerospace storage, MIL-PRF-131 |
|
Metallized film (PET/met-PET/PE) |
0.01–0.10 |
0.5–2.0 |
Good to Very Good |
Food, pharma, general industrial barrier pouches |
|
Transparent nylon/PE (clear barrier) |
0.30–1.00 |
2.0–10.0 |
Moderate |
Short-term food packaging, visual inspection required |
|
ESD shielding laminate (met-PET/PE/conductive) |
< 0.05 |
< 1.0 |
Good + ESD |
Electronics, avionics per MIL-PRF-81705 |
|
Standard poly (LDPE/HDPE) |
> 5.00 |
> 50.0 |
Minimal |
Non-sensitive general packaging only |
For regulated applications such as military and aerospace packaging, the specification itself defines the maximum allowable MVTR and OTR, the required seal strength, and the testing methods used to verify conformance. For commercial food and pharmaceutical applications, buyers typically specify a target MVTR or OTR based on the product's sensitivity and required shelf life.
See our guide on barrier bags levels and functions for a deeper explanation of how barrier levels are classified.
Industries That Use Barrier Pouches
Barrier pouch packaging is used across a broad range of industries, with requirements varying significantly between sectors:
- Food and beverage: Metallized or foil-laminate stand-up and flat pouches extend shelf life for dry goods, snacks, coffee, spices, and liquids by blocking oxygen and moisture. Resealable closures are common for consumer retail formats.
- Pharmaceutical and medical: Foil-laminate barrier pouches protect moisture-sensitive medications, diagnostic test strips, and medical devices. Child-resistant and tamper-evident features are often required alongside the barrier laminate.
- Electronics and ESD-sensitive components: MIL-PRF-81705 ESD-shielding barrier bags are the standard for circuit boards, microelectronics, and avionics assemblies. The conductive layer in these pouches creates a Faraday cage that attenuates external electrostatic fields.
- Military and defense: MIL-PRF-131 and MIL-PRF-81705 barrier bags are commonly specified in DoD contracts for component storage and shipment. MIL-STD-2073 governs the overall packaging process, including the use of desiccants and humidity indicator cards alongside the barrier bag.
- Industrial and aerospace: Machined parts, bearings, gears, and precision assemblies are packaged in foil or grease-barrier pouches to prevent corrosion during long-term storage or overseas shipment.
Key Factors When Choosing a Barrier Pouch
Selecting the right barrier bag packaging requires working through several variables in order:
- Barrier level required: Determine the MVTR and OTR your product can tolerate over its required shelf or storage life. Products with high moisture sensitivity require foil-laminate constructions; those with moderate requirements may be served by metallized film at lower cost.
- Product sensitivity: Is the product sensitive to moisture, oxygen, light, ESD, or a combination? ESD-sensitive items require MIL-PRF-81705 bags regardless of other factors. Light-sensitive items require opaque or UV-blocking laminates.
- Sealing method: All moisture barrier pouches require heat sealing to achieve their rated MVTR and OTR performance. Verify that your sealing equipment can achieve the seal strength specified by MIL-DTL-117 or the commercial equivalent.
- Size and configuration: Choose a pouch format (flat, stand-up, gusseted) and size based on the dimensions of the contents and the handling environment. Custom sizes are available for non-standard components.
- Regulatory compliance: For military and government contracts, the applicable MIL-SPEC is typically called out in the procurement documentation. For food and pharmaceutical applications, applicable FDA or EU regulations may govern material selection.
Barrier Pouches vs. Other Packaging Options
Understanding where moisture barrier pouches fit relative to other packaging types helps clarify when they are the right choice.
|
Packaging Type |
Barrier Performance |
Durability |
Key Trade-offs |
|
Barrier pouch |
Excellent (foil laminates near-zero MVTR/OTR) |
Very high (multi-layer laminates, heat seal) |
Light, flexible, resealable; low unit cost at volume |
|
Standard poly bag |
Minimal (high MVTR and OTR) |
Low to moderate |
Low cost; suited only to non-sensitive goods |
|
Rigid container |
Excellent (metal/glass) |
Excellent |
Heavy, higher freight and storage cost; no flexibility |
|
Vacuum-sealed pouch |
Good (dependent on laminate) |
High if foil-based |
No headspace; requires vacuum equipment; limited to dense products |
Get the Right Barrier Pouch from Royco Packaging
Royco Packaging has supplied DoD contractors, aerospace manufacturers, and industrial customers with barrier pouches and stand-up pouches for more than 40 years. We stock MIL-PRF-131, MIL-PRF-81705, and a full range of commercial barrier pouch formats in-house for same-day shipping.
Custom sizes and laminate configurations are available.
Questions about barrier level requirements or MIL-SPEC compliance? Call 1-800-67-ROYCO or email sales@roycopackaging.com.
