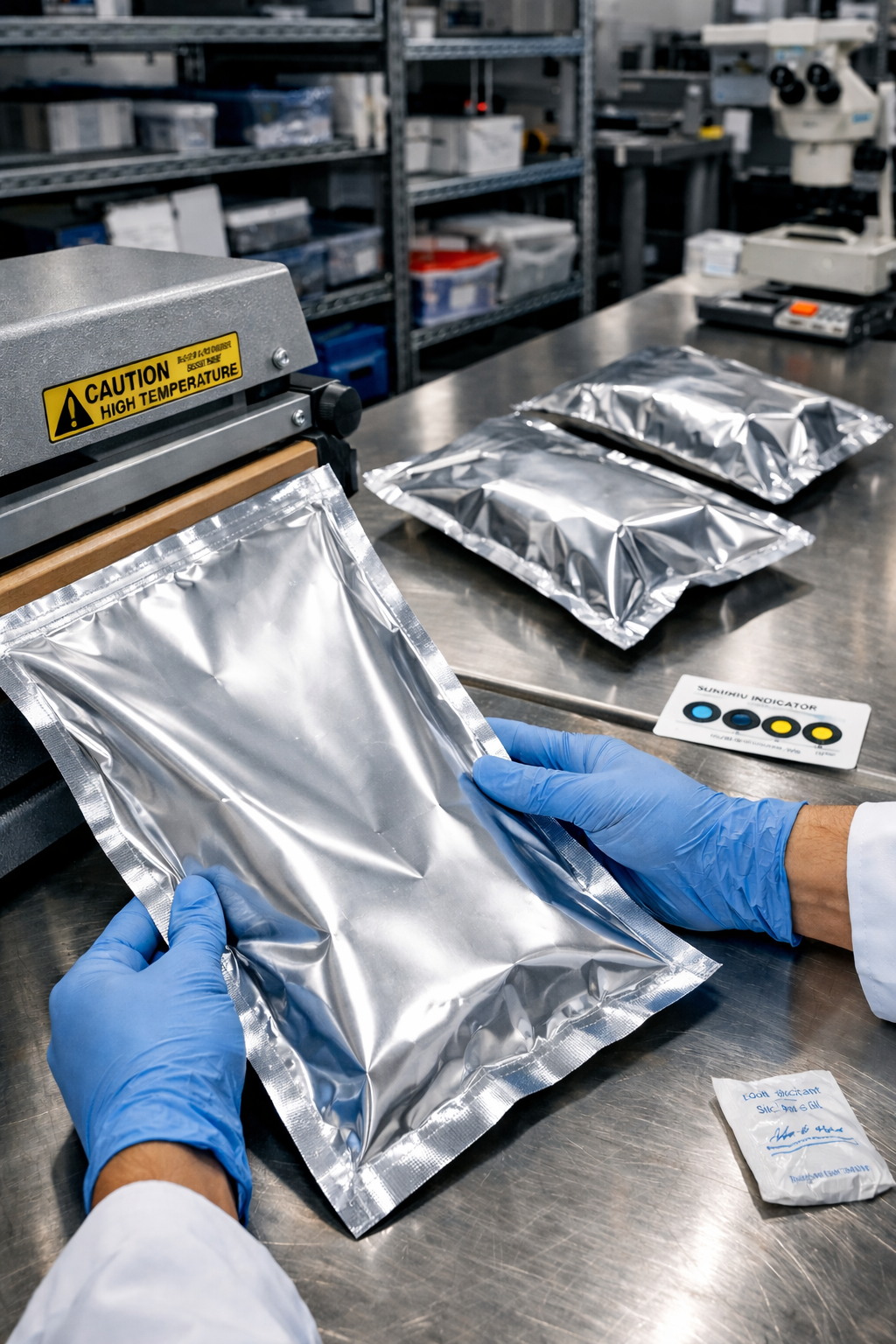

When the Bag Is the Last Line of Defense
Instruments that monitor, measure, and control critical systems share one characteristic that is rarely discussed in the same breath as their performance specifications: Extreme sensitivity to the environment in which they are shipped and stored. A precision gyroscope calibrated to a fraction of a degree per hour. An infrared detector tested to a noise-equivalent power floor that took months to achieve. A laser rangefinder assembly with optical coatings that took weeks to manufacture. What these instruments have in common is that moisture, oxygen, and corrosive atmospheric conditions will degrade their performance — and that degradation often begins not during service, but on the shelf.
High-barrier flexible packaging based on foil laminate constructions exists to address this problem. The technology is mature but frequently misapplied, mis-specified, or simply undersold in procurement conversations that focus on price per unit rather than the cost per protected asset. This post examines the material science behind foil-based barrier laminates, the military specifications that codify performance requirements for critical applications, and how to match packaging specifications to instrument protection requirement.
Why Standard Packaging Films Fall Short
Flexible packaging for industrial and scientific instruments is not a problem that can be solved with commodity polyethylene or generic nylon. These materials are permeable — not in the sense that they leak visibly, but in the sense that small molecules move through their polymer matrix continuously via a process of absorption, diffusion, and desorption. Water vapor finds this pathway easily, as does oxygen, sulfur compounds, chlorine vapors, and other atmospheric contaminants that attack metallic contacts, optical surfaces, and precision mechanical assemblies.
Quantifying this permeability requires two measurements. Water vapor transmission rate (WVTR), expressed in grams per square meter per day, describes how much moisture passes through a unit area of film under standardized conditions (typically 38°C and 90% relative humidity per ASTM F1249 or ASTM E96). Oxygen transmission rate (OTR), expressed in cubic centimeters per square meter per day per atmosphere, describes the equivalent passage for oxygen. Standard low-density polyethylene films yield WVTR values in the range of 15 to 20 g/m²/day — acceptable for packaging a loaf of bread, completely inadequate for packaging a precision accelerometer.
Even materials marketed as "barrier" films — oriented polypropylene, biaxially oriented PET, coextruded nylon — offer WVTR values that, while better than commodity PE, remain orders of magnitude higher than what foil-based constructions achieve. The gap is not incremental. It is the difference between a material that slows moisture ingress and one that essentially stops it.
Figure 1: WVTR comparison across common flexible packaging materials — foil laminates achieve moisture barrier performance orders of magnitude superior to film alternatives
The Aluminum Foil Layer: Where the Barrier Actually Lives
The defining component of a high-barrier flexible laminate is the aluminum foil layer. Unlike barrier coatings such as vacuum-deposited aluminum oxide or silicon oxide applied as nanometer-scale thin films to polymer substrates, rolled aluminum foil in the 0.000285-inch (approximately 7-micron) to 0.001-inch range provides a continuous metallic barrier with no pinholes, no grain boundaries in the barrier sense, and no permeability in practical packaging conditions. Water vapor and oxygen cannot diffuse through a continuous metal layer because there is no polymer matrix for them to dissolve into and traverse.
The practical WVTR performance of well-constructed foil laminates is below the detection threshold of standard ASTM test methods — effectively less than 0.001 g/m²/day. OTR values are similarly unmeasurable under standard conditions. This is not a specification claim; it is a physical consequence of using a material with zero gas permeability as the barrier layer.
The foil layer does introduce a tradeoff: aluminum is a metal, and it will crack under repeated flex cycles. Flex cracking breaks the continuous foil structure and creates pinhole pathways that destroy the barrier property. This is why foil laminate constructions are multi-layer, and why the design of those surrounding layers is not incidental to the performance of the package.
Figure 2: Typical foil laminate cross-section — each layer serves a defined engineering function in the complete barrier system
Laminate Construction: Each Layer Has a Job
Outer Layer
The outer layer of a foil barrier laminate is typically biaxially oriented polyester (BOPET) or oriented polypropylene (OPP) in the 48- to 92-gauge range. Its function is mechanical: puncture resistance, abrasion resistance, and dimensional stability. In instrument packaging applications, the outer layer also frequently serves as the print surface — carrying part numbers, handling instructions, humidity indicator window locations, and compliance markings. The outer polyester protects the foil from the mechanical stresses of handling, shipping, and stacking that would otherwise initiate flex cracks.
Adhesive Bond Layers
The layers bonding the outer polyester to the foil, and the foil to the inner sealant film, are not passive. The adhesive chemistry affects the long-term bond integrity under temperature extremes and humid storage conditions, and poor adhesive selection is a common failure mode in laminates that meet specification new but delaminate after a year on a shelf. For instrument packaging applications with long storage life requirements — and military applications routinely specify 10-year shelf life — the adhesive system warrants explicit attention in the qualification process.
Inner Sealant Layer
The inner layer contacts the instrument. In standard constructions this is a polyethylene — low-density for heat-seal performance, sometimes blended with EVA for seal initiation temperature reduction. For instrument packaging where corrosion inhibition is required, the inner layer is the carrier for volatile corrosion inhibitor (VCI) chemistry. VCI-bearing inner films release corrosion-inhibiting compounds into the enclosed space, where they protect metallic surfaces and interrupt the chemical reactions that produce corrosion. The combination of foil barrier on the outside (preventing moisture ingress) and VCI chemistry on the inside (neutralizing whatever residual moisture is present) represents the complete corrosion protection system.
MIL-PRF-131: The Baseline Specification for Barrier Materials
MIL-PRF-131 defines performance requirements for foil-based barrier materials used in military packaging applications. The current revision (Rev L) establishes the test methods and acceptance criteria that qualification testing must satisfy, and which certificate of conformance documentation must reference.
Class 1 under MIL-PRF-131 covers the standard foil laminate construction described above — an aluminum foil core with OPP outer layer and polyethylene inner layer. The specification establishes requirements for water vapor transmission, seal strength, puncture resistance, blocking resistance, and heat-seal initiation temperature. It also establishes requirements for appearance, dimensional tolerances, and lot sampling procedures that qualify the material for use on military programs governed by military packaging standards.
For defense procurement and military packaging programs, MIL-PRF-131 is not merely a performance reference — it is the specification against which material qualification is demonstrated, and the reference that program-level packaging requirements documents cite when specifying barrier bag material. Packaging for military programs that does not reference MIL-PRF-131, or that uses materials not demonstrably conformant with it, creates a gap that packaging inspectors and DCMA auditors will find.
A point that generates confusion in procurement: MIL-PRF-131 governs the material, not the finished bag. The bag construction — dimensions, seam type, seal configuration, desiccant provisions — is governed by MIL-DTL-117H and related documents.
MIL-PRF-22191: High Barrier with Transparency for Visual Inspection
MIL-PRF-22191, addresses a specific use case that MIL-PRF-131L does not cover: applications where high barrier performance is required and the contents must remain visible through the packaging. Where MIL-PRF-131L uses an aluminum foil core that renders the package opaque, MIL-PRF-22191 achieves its barrier properties with transparent construction — typically through a combination of transparent barrier films and coatings that provide meaningful moisture and gas resistance. This matters in contexts where visual inspection of the instrument, component, or assembly must be possible without opening the package.
The practical applications are straightforward: Kitted assemblies where receiving inspection needs to confirm contents without breaking the seal, electronic components in repair depots where part number verification through the bag prevents misidentification, and any scenario where the packaging serves a dual function — environmental protection during storage and visual verification without compromise. The barrier performance of MIL-PRF-22191 material is real and meaningful, but it is not equivalent to foil-based MIL-PRF-131L construction. Transparent barrier films, even high-performance constructions, yield WVTR values measurably higher than continuous aluminum foil. The specification exists because the transparency requirement is genuine and the available barrier performance, while not foil-equivalent, is substantially better than uncoated films.
The two specifications serve different functional needs: MIL-PRF-131L for maximum barrier performance where opacity is acceptable, MIL-PRF-22191 for applications where the ability to see through the packaging is operationally necessary and the somewhat lower barrier performance of transparent construction is an acceptable tradeoff.
Matching Specification to Protection Requirement
The instruments most at risk from inadequate packaging share a common characteristic: they are high-value, difficult or impossible to replace in the field, and their degradation from improper packaging is latent — not immediately visible, but manifesting as performance drift, increased noise floor, or premature failure under service conditions.
For general electronic instrument protection — circuit assemblies, power supplies, control electronics — MIL-PRF-131 Class 1 foil barrier material sealed into a MIL-DTL-117H Type I bag, with a desiccant sized to the internal volume and residual moisture, represents the complete solution. The foil barrier arrests moisture ingress; the desiccant handles the moisture present at seal time.
For applications requiring visual verification of contents without opening the package — assemblies where receiving inspection or in-service verification requires visual confirmation of contents without opening the seal — MIL-PRF-22191 transparent barrier material provides the right combination of protection and visibility. The barrier performance is real but does not match foil construction; applications with the most demanding long-term moisture requirements should stay with MIL-PRF-131L foil. MIL-PRF-22191 is the correct specification where transparency is a functional requirement, not merely a convenience.
For instruments requiring extended shelf life, 5 to 10 years or longer — calibration standards, strategic reserve components, long-term spares — the desiccant sizing calculation and heat-seal integrity become the critical variables. The foil barrier itself does not degrade appreciably over this timeframe if the laminate is properly constructed. The failure modes are at the seals: inadequate initial seal strength, seal contamination, or adhesive degradation that creates a pathway around the foil layer.
For instruments with metallic surfaces susceptible to corrosion — precision machined components, optical mounts, contact assemblies — inclusion of a VCI inner layer moves from optional to necessary. The combination of external foil barrier and internal VCI chemistry addresses both the ingress pathway and the residual moisture already present in the package headspace at seal time.
What to Require from Your Packaging Supplier
The quality and compliance infrastructure around foil barrier packaging matters as much as the material construction itself. Instruments packaged in foil barrier bags that cannot be traced to a qualified material lot, with conformance documentation that survives an audit, are instruments that exist in a gray zone — protected physically but not documentable.
A properly specified foil barrier packaging procurement requires: documented material qualification against MIL-PRF-131L or MIL-PRF-22191 as applicable, with reference to current revision; a Certificate of Compliance (CoC) with each order that identifies the specific lot, documents the applicable specification, and confirms domestic manufacturing origin; dimensional and gauge certification against the purchase order requirements; and traceability sufficient to support a DCMA review or program-level quality audit.
Domestic manufacturing origin is not a paperwork preference in this context. Defense packaging procurement operates under domestic preference requirements that extend to materials used in packaging sensitive components. A foil barrier bag manufactured overseas, regardless of its physical performance, creates a country-of-origin compliance exposure that a program packaging engineer should not be carrying. The supply chain for this class of material should be domestic, manufactured under a certified quality management system.
The Bottom Line
High-barrier foil laminate packaging is the engineered solution to a problem that standard films cannot solve: protecting sensitive industrial and scientific instruments from moisture, oxygen, and corrosive atmospheric species during storage and transit periods that may span years. The material science is well-established. The military specifications — MIL-PRF-131L for maximum barrier performance in opaque foil construction, MIL-PRF-22191 for applications where transparency and visual inspection capability are required — provide clear performance frameworks against which materials and finished packages can be qualified and documented.
What separates adequate instrument protection from inadequate protection is rarely the instrument itself. It is the packaging decision that was made when the instrument left the facility, and the documentation that either closes or leaves open the question of whether that decision was the right one. For instruments where the cost of degradation is measured in program risk rather than material cost, the specification of foil barrier packaging is not a line item to optimize on price. It is an engineering decision, and it deserves to be treated as one.
