September 28, 2023

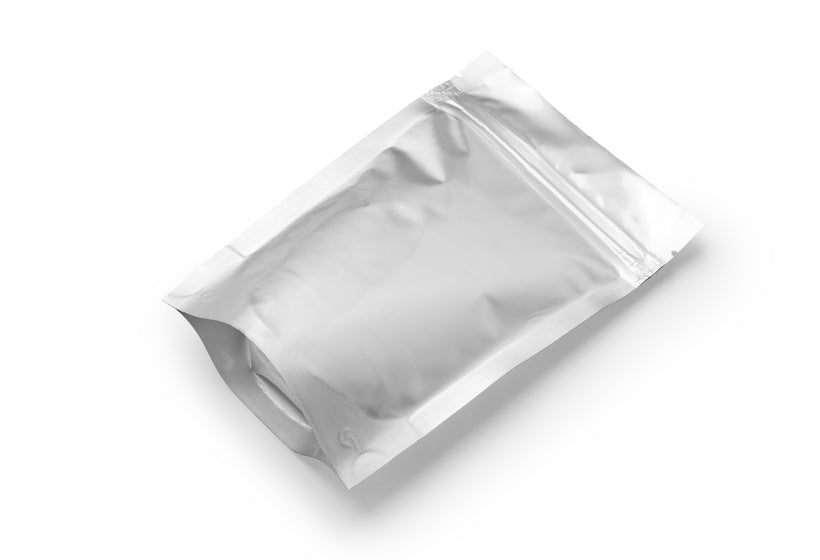

Vapor Barrier Bags: How They Work, MVTR Ratings, and How to Choose One

Quick Summary

Vapor barrier bags protect moisture-sensitive products by dramatically reducing the amount of water vapor that can pass through the packaging material. Unlike standard polyethylene bags, they use multi-layer laminate constructions—often including aluminum foil—to create a highly effective moisture barrier. The most important performance metric is moisture vapor transmission rate (MVTR): the lower the MVTR, the better the protection. This guide explains how vapor barrier bags work, how to interpret MVTR ratings, and how to choose the right bag for industrial, military, aerospace, pharmaceutical, and long-term storage applications.

Vapor barrier bags are multi-layer laminate flexible packaging designed to block moisture vapor from reaching the product inside. Unlike standard poly bags, which offer minimal resistance to water vapor, vapor barrier bags incorporate an aluminum foil or metallized film layer that measurably limits moisture transmission. For buyers in military, industrial, aerospace, and pharmaceutical sectors, selecting the right moisture vapor barrier bag means understanding one key metric, the moisture vapor transmission rate (MVTR), and matching the laminate construction to the protection requirement.

This guide covers how vapor barrier bags work, how to read MVTR figures, and how to select the right bag for your application.

What Are Vapor Barrier Bags?

Vapor barrier bags are flexible packaging constructed from two or more bonded layers, each serving a distinct protective function. In a typical foil-laminate construction:

Outer layer (polyester or nylon film): Provides puncture resistance, structural rigidity, and a printable surface for labels.
Middle barrier layer (aluminum foil or metallized film): This is the defining element. Solid aluminum foil achieves near-zero moisture vapor transmission; metallized film provides good barrier performance at lower cost and weight but is not equivalent to solid foil for critical applications.
Inner layer (polyethylene or polypropylene): Provides the heat-sealable surface and forms the food or product contact layer. For military and industrial applications, this layer must be compatible with the desiccants and other materials placed inside the bag.

Once heat sealed, a vapor barrier bag creates a controlled internal atmosphere that remains stable for weeks, months, or years depending on the laminate's MVTR rating and the presence of desiccants inside.

For an overview of the types available, see our guide on the different types of moisture barrier bags.

MVTR and WVTR Explained: The Metric That Matters

MVTR (moisture vapor transmission rate), also called WVTR (water vapor transmission rate), measures how much water vapor passes through a packaging material per square meter over a 24-hour period, expressed in grams. A lower MVTR means a better moisture barrier.

To put the numbers in context:

Standard LDPE poly bag: MVTR typically exceeds 5 g/m2/24h. At this level, moisture passes through relatively freely. A poly bag provides no meaningful vapor protection for sensitive goods.
Metallized film bag: MVTR of 0.01 to 0.10 g/m2/24h. Suitable for food applications, shorter-term industrial storage, and consumer goods.
Solid aluminum foil laminate (MIL-PRF-131 compliant): MVTR below 0.002 g/m2/24h. This near-zero transmission rate is what the military specification requires for long-term storage of defense and aerospace components.

When a contract or specification calls out a maximum MVTR, that figure defines the minimum barrier performance the bag must achieve. For military and government applications, the applicable MIL-SPEC defines the test method and the acceptance threshold.

Vapor Barrier Bag Materials and Construction

The table below compares common MVR / moisture-vapor-resistant bag constructions by MVTR, barrier level, and typical use.

Construction	MVTR (g/m²/24h)	Barrier Level	Typical Use
Solid Al foil laminate (PET/Al/PE)	< 0.002	Excellent	MIL-PRF-131 barrier bags; long-term military/aerospace/industrial storage
Poly-coated vapor wrapper (Nox-Rust PC55D)	0.01–0.05	Very Good	Metal parts and assemblies requiring moisture and VCI protection; outdoor equipment storage
Metallized film (PET/met-PET/PE)	0.01–0.10	Good	General industrial vapor barrier bags; food and consumer goods
Foil + fabric laminate (MIL-PRF-22191)	< 0.01	Excellent	Heavy-duty long-term storage; military and aerospace applications requiring textile reinforcement
Standard LDPE poly bag (no foil)	> 5.00	Minimal	Non-moisture-sensitive goods only; not a vapor barrier bag

Need vapor barrier bags that meet MIL-PRF-131? Royco stocks Nox-Rust VW35D and PC55D plus desiccants, ready to ship.

Shop Vapor Barrier Bags

Vapor Barrier Bags vs. Other Moisture Protection

Buyers often compare vapor barrier bags for metal parts with VCI bags and desiccants. These are complementary, not competing, protection methods, and the right solution for most industrial and defense applications combines all three. The table below clarifies how each works and when to use each.

Factor	Vapor Barrier Bag	VCI Bag	Desiccant Pack
Primary mechanism	Blocks moisture vapor from entering the sealed package	Emits corrosion-inhibiting molecules that coat metal surfaces	Removes moisture from sealed interior air space
Protects against	Moisture vapor, humidity, condensation	Oxidation and corrosion on bare metal	Residual moisture inside sealed package
Hermetic seal required	Yes; must be heat sealed to achieve rated MVTR	No; VCI works inside a loosely closed bag	Yes; used inside a sealed barrier bag
Best for	Any moisture-sensitive product: electronics, pharma, military parts	Bare metal parts and assemblies susceptible to rust or oxidation	Long-duration storage where residual humidity must be controlled
Used together?	Yes; barrier bag + desiccant is the standard combination	Yes; VCI bag + desiccant + barrier bag for maximum metal protection	Always paired with a sealed barrier bag

For metal components susceptible to rust or oxidation, a vapor barrier bag alone may not provide complete protection: blocking moisture vapor from the outside is important, but corrosion-inhibiting molecules from a VCI material inside the bag provide active protection for the metal surface. If your VCI bags are not preventing rust, the problem may be a breach in the seal or a mismatch between the VCI chemistry and the metal type.

See our guide on why metal parts still rust in VCI bags for a detailed diagnostic.

Military and Industrial Specifications for Vapor Barrier Bags

For defense contractors and industrial suppliers working under government contracts, MIL-PRF-131 vapor barrier bags are the standard material specification. MIL-PRF-131 requires a solid foil-laminate heat-sealable bag with MVTR below 0.002 g/m2/24h, grease resistance, and conformance to defined seal strength requirements under MIL-DTL-117.

MIL-PRF-22191 covers heavier-duty barrier materials that incorporate a textile reinforcing layer for applications requiring additional puncture and tear resistance, such as large or heavy defense components stored for extended periods.

Under MIL-STD-2073, Method 50 defines the complete barrier packaging system for defense applications. A Method 50 compliant package consists of:

A heat-sealed MIL-PRF-131 or equivalent vapor barrier bag
Desiccant packs (MIL-D-3464) placed inside the sealed bag to control residual internal humidity
A humidity indicator card inside the bag to provide a visual humidity check at the point of opening

Together, these three components form the standard inner packaging system for moisture-sensitive military and aerospace parts. Each element reinforces the others: the bag blocks external vapor, the desiccant controls interior humidity, and the indicator card confirms that the system performed as intended.

How to Choose and Use a Vapor Barrier Bag

Work through the following variables to identify the right corrosion prevention bag or vapor barrier bag for your application:

Barrier level required: Determine the MVTR your product can tolerate over its required storage or transit period. For military and long-term industrial applications, specify solid foil laminate achieving MVTR below 0.002 g/m2/24h. For shorter-duration or less critical applications, metallized film may be acceptable at lower cost.
Product sensitivity: Is the primary risk moisture vapor, active corrosion on metal surfaces, or both? Moisture-sensitive electronics need a vapor barrier bag with desiccants. Bare metal parts need VCI materials inside the bag in addition to the barrier bag and desiccants.
Storage or transit duration: Longer durations require higher-performance laminates and larger desiccant units. For multi-year defense storage applications, solid foil laminate with sufficient desiccant units for the enclosed volume is the minimum appropriate specification.
Sealing method: All moisture vapor barrier bags must be heat sealed to achieve their rated MVTR. A bag that is folded, taped, or zip-closed does not constitute a vapor-tight closure. Ensure your heat sealer settings are validated for the specific laminate.
Sizing: Size the bag so the product fits comfortably with room for desiccants, a humidity indicator card, and adequate material for a proper heat seal at the open end. Oversizing wastes material; undersizing forces the seal line too close to the product and risks seal failure.

Royco's Nox-Rust Vapor Barrier Bags

Royco Packaging stocks two Nox-Rust vapor barrier bag formats for industrial and defense applications:

Nox-Rust VW35D Vapor Wrapper: A foil-laminate vapor barrier bag providing an impermeable shield against moisture and vapor infiltration. The VW35D is suited to wrapping and sealing metal components, precision parts, and aerospace assemblies where long-term vapor protection is required.
Nox-Rust PC55D Poly Coated Vapor Wrapper: A poly-coated vapor wrapper that combines moisture barrier properties with a durable outer surface. The PC55D is appropriate for components requiring both vapor protection and resistance to abrasion or outdoor storage conditions.

Both products are available through Royco's corrosion protection collection. Custom sizes are available for non-standard components.

Talk to a Royco Vapor Barrier Bag Specialist

Royco Packaging has supplied MIL-PRF-131 vapor barrier bags, Nox-Rust VCI packaging, and MIL-D-3464 desiccants to defense contractors and industrial customers for more than 40 years. We stock all major vapor barrier bag formats in-house for same-day shipment and can fabricate custom sizes to your exact specifications. All MIL-SPEC orders include certificates of conformance. Royco holds ISO 9001:2015 certification.

Not sure which barrier level or MVTR you need? Talk to a Royco specialist at 1-800-67-ROYCO.

Frequently Asked Question

What is the difference between a vapor barrier bag and a moisture barrier bag?

The terms are used interchangeably in most industrial and defense contexts. Both refer to flexible packaging that blocks moisture vapor transmission. If there is any distinction, it is one of emphasis: vapor barrier bag tends to be used when the primary concern is vapor diffusion through the bag material, while moisture barrier bag is sometimes used more broadly to include protection against liquid water as well. The underlying laminate construction and MVTR specifications are the same for both.

Do I need a desiccant inside a vapor barrier bag?

For most applications involving moisture-sensitive goods, yes. A sealed vapor barrier bag blocks external moisture vapor from entering, but residual moisture in the air space inside the bag at the time of sealing can still cause corrosion or degradation over time. Desiccant packs placed inside the sealed bag adsorb this residual moisture, maintaining a consistently low internal humidity throughout storage. For military applications, desiccants are required under MIL-STD-2073 Method 50.

What MVTR do I need for my application?

For short-term industrial storage or domestic shipment, metallized film bags with MVTR between 0.01 and 0.10 g/m2/24h are generally adequate. For long-term storage, ocean freight, or military and defense applications, specify solid foil laminate achieving MVTR below 0.002 g/m2/24h. When in doubt, the lower the MVTR the better; the performance cost is cost-per-bag, not protection.

Are vapor barrier bags heat-sealable?

Yes, all foil-laminate and metallized film vapor barrier bags are heat-sealable. Heat sealing is required to create the hermetic closure that delivers the bag's rated MVTR. Zip closures and tape do not constitute a vapor-tight seal. The inner polyethylene layer bonds when heat and pressure are applied by a validated heat sealer.
