MIL-PRF-3420 Class 1, Style C VCI Foil Laminate | Zerust® 705 Vapor Inhibitor

In stock
SKU: ZR70536
$685.00 USD
Size

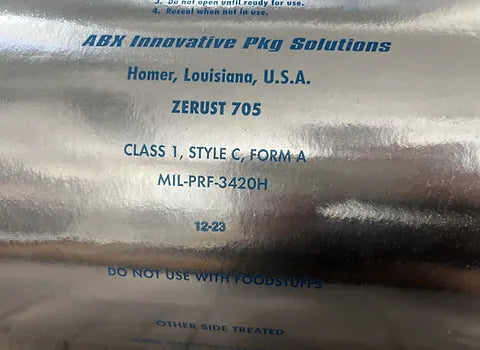

Created to meet the demanding standards of MIL-PRF-3420 Class 1, Style C, Zerust® 705 by ABX Packaging is the only QPL approved material meeting both the active corrosion protection and superior physical durability aspects of the standard. As a Style C material, this laminate is specifically designed to be moldable, allowing it to form and hold its shape around complex or heavy components. This makes it ideal for packaging applications where the barrier must conform closely to the geometry of the item for maximum protection.

Its multi-layer construction—Foil/PE/70 lb. Natural Kraft/22 lb. Rust Inhibitor—combines the mechanical strength of kraft paper, the barrier properties of foil, and the corrosion-fighting benefits of VCI saturation. The embedded volatile corrosion inhibitors activate to create a dry, invisible molecular shield on ferrous surfaces, blocking rust caused by humidity, airborne contaminants, oxygen, and long-term storage conditions.

Zerust® 705 meets vapor inhibitor performance requirements under MIL-STD-3010/4031B, making it fully qualified for mission-critical preservation programs.

Typical Properties

  • Basis Weight: 121 lbs/3000 ft²
  • Yield: 3,570 in²/lb
  • Elmendorf Tear: 110 gf (MD) / 110 gf (CD)
  • Burst (Mullen): 60 psi
  • Vapor Inhibitor Ability: Pass (MIL-STD-3010/4031B)

Why Choose MIL-PRF-3420 Class 1, Style C?

  • Heavy-duty foil-laminate VCI construction
  • Moldable, shape-holding material ideal for wrapping irregular, contoured, or heavy parts
  • Meets MIL-PRF-3420 Class 1, Style C military specification
  • Provides long-term corrosion protection for ferrous metals
  • Excellent physical strength, tear resistance, and puncture durability
  • Perfect for export packaging, depot storage, and high-value defense assets
  • Clean, dry, residue-free alternative to oils and greases

Typical Applications

  • Wrapping large, complex-shaped ferrous components
  • Contoured packaging for machinery, castings, tools, and military hardware
  • Long-term storage and export preservation
  • Protective liners or formed inserts requiring shape stability
  • MIL-SPEC multi-layer preservation systems

Available From Royco Packaging

Royco Packaging supplies MIL-PRF-3420 Class 1, Style C moldable VCI laminate in:

  • Standard and custom roll widths
  • Flat-cut sheets

Combine Zerust® 705 with other Royco corrosion-prevention materials:

  • MIL-PRF-131 foil barrier materials
  • MIL-PRF-121 kraft/PE laminates
  • MIL-PRF-81705 ESD/moisture barrier films
  • MIL-D-3464 desiccants

Speak With a Packaging Specialist

For bulk pricing, application support, or custom converting, call 1-877-MIL-SPEC. Our specialists will help you build the perfect corrosion-prevention solution for your mission.
