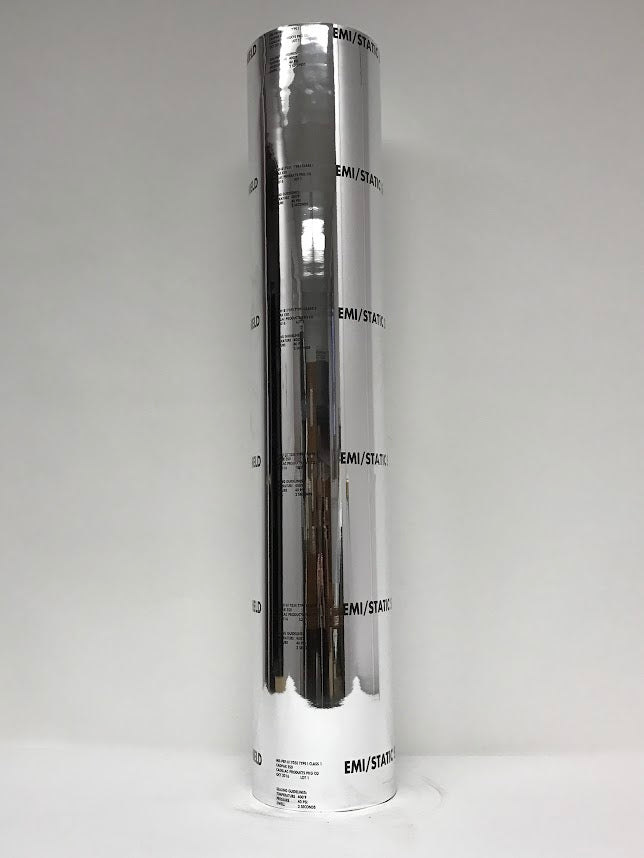

MIL-PRF-81705 Type I ESD Moisture Barrier Film

MIL-PRF-81705 Type I barrier material is engineered specifically for applications where ESD protection, EMI shielding, and moisture control are essential. This advanced laminate protects static-sensitive devices and assemblies from electrostatic discharge, electromagnetic interference, oxygen, and water vapor, ensuring safe long-term storage and transit of high-value electronics.

Built with a multilayer structure of Met-PET / Polyethylene / Foil / ESD-Sealant, it combines a metallic moisture barrier with low surface resistivity layers that rapidly dissipate charge. The film is fully heat-sealable, enabling fabrication into ESD-safe barrier bags, pouches, liners, and covers used throughout defense, aerospace, semiconductor, and electronics-manufacturing supply chains.

Typical Properties

• Caliper: 4.5 mil (ASTM D2103)
• Yield: 5,680 in²/lb (Calculated)
• Puncture Resistance: 19 lbs (MIL-STD-3010)
• Tensile Strength: 4,100 psi MD / 4,300 psi TD (ASTM D882)
• OTR: 0.0005 cc/100 in²/day (ASTM D3985)
• WVTR: 0.0005 g/100 in²/day (ASTM F1249)
• Electrostatic Shielding Voltage: 0.45 V (EIA-541 Appendix)
• EMI Attenuation: >35 dB (before flexing), 30 dB (after flexing)
• Static Decay:
  • Inner: <1.0 sec
  • Outer: <0.02 sec
• Surface Resistivity:
  • Inner: 7.0 × 10¹⁰ Ω
  • Outer: <1.0 × 10⁴ Ω
• Seal Strength: 14 lbs/in (ASTM F88)
• Recommended Seal Conditions: 375°F, 40 psi, 1.0 sec (range 325°F–425°F)

Available Roll Sizes:

• 36" wide x 600' rolls (8135-00-092-3220)
• 50" wide x 600' rolls
• Custom widths available upon request

Why Choose MIL-PRF-81705 Type I?

• QPL MIL-PRF-81705E certified
• Electrostatic shielding for static-sensitive electronics
• EMI protection for mission-critical hardware
• Watervaporproof and oxygen-barrier properties safeguard against corrosion
• Heat-sealable for secure packaging integrity
• Ideal for semiconductor components, avionics, circuit boards, electronics modules, and high-value assemblies

Applications

• ESD-safe moisture barrier bags
• EMI-shielded storage bags and covers
• Moisture and static-sensitive electronics packaging
• Export packaging for defense and aerospace electronics
• Inner layers of multi-layer MIL-SPEC systems

Available From Royco Packaging

Royco Packaging stocks MIL-PRF-81705 Type I materials for immediate shipment, with options including:

• Custom roll widths
• Flat-cut sheets
• Fabricated ESD barrier bags and pouches


Pair CadPak ESD with complementary Royco protection materials:

• MIL-PRF-131 foil barrier laminates
• MIL-PRF-121 barrier papers
• MIL-DTL-17667 neutral wraps
• V3c and W5c cartons
• MIL-D-3464 desiccants

Speak With a Packaging Specialist

For technical support, custom sizes, or bulk orders, call 1-877-MIL-SPEC. Royco’s specialists will help you build a complete, mission-ready ESD and moisture-barrier packaging solution.

Royco Packaging — Mission Critical Protection. Made in the USA.
