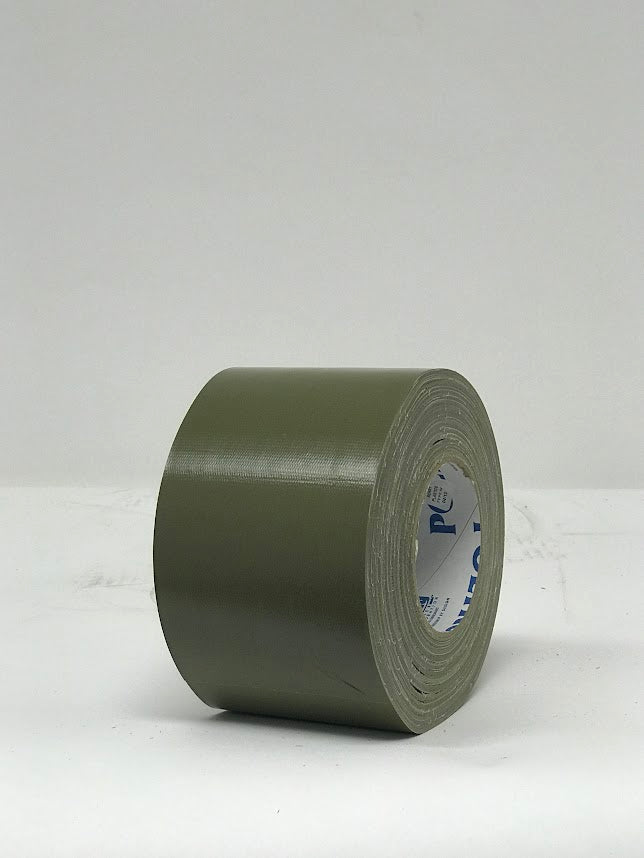

Military Grade Duct Tape | ASTM-D-5486 Type IV
ASTM-D-5486 Type IV, Class 1 is the strongest military-grade duct tape available. The current standard supersedes the legacy PPP-T-60 TY.4 CL.1 military specification. This premium, waterproof, PE-coated cloth tape delivers unmatched tensile strength, aggressive adhesion, and extreme durability for demanding defense, aerospace, industrial, and field applications.
Royco Packaging stocks military duct tape in 2”, 3”, and 4” widths × 60-yard rolls for immediate shipment.
Sold by the case only - Ships with Manufacturer Certificate of Conformance included.
National Stock Number (NSN): 7510-00-266-5016
ASTM-D-5486 Type IV military duct tape is engineered for high-stress, mission-critical sealing, wrapping, reinforcing, and surface protection. Its high-tensile PE-coated cloth backing provides exceptional strength and conformability, allowing the tape to wrap tightly around irregular surfaces, gear, wiring, container edges, and rugged packaging.
The natural rubber-based adhesive delivers rapid, aggressive bonding to metals, plastics, laminates, wood, fiberboard, and other difficult substrates—making it ideal for securing heavy loads, sealing military packaging, or performing essential field repairs.
A top-tier barrier performer, this tape is waterproof, abrasion-resistant, solvent-resistant, and moisture-resistant, making it suitable for environments where conventional duct tape fails.
Key Features & Benefits
- Meets ASTM-D-5486 Type IV, Class 1 (replaces PPP-T-60 Type IV, Class 1)
- Strongest military grade duct tape available
- Waterproof and abrasion resistant
- Aggressive adhesion to metals, plastics, and composite surfaces
- High tensile strength PE-coated cloth backing
- Crisp, straight tear for clean application
- Extremely conformable for irregular or contoured surfaces
- Performs in challenging field, depot, and industrial environments
Technical Specifications
- Total Thickness: 12.0 mil (0.305 mm)
- Tensile Strength: 50 lb/in (87.56 N/cm)
- Elongation: 13%
- Adhesion to Steel: 95 oz/in (10.39 N/cm)
- Adhesion to Backing: 40 oz/in (4.38 N/cm)
- Operating Temperature Range: 40°F to 200°F (4°C to 93°C)
- Moisture / Solvent / Abrasion Resistance: Excellent
- Color: Olive Drab
- Shelf Life: 36 months (at recommended storage)
Standard Roll Sizes
- 2" x 60yd Rolls
- 3" x 60yd Rolls
- 4" x 60yd Rolls
Typical Applications
- Military and aerospace packaging (ASTM-D-5486 compliant)
- Sealing and reinforcing heavy cartons or containers
- Field repairs, rigging, and temporary equipment fixes
- Wrapping pipes, cables, conduits, or irregular components
- Surface masking, blast-media protection, and abrasion shielding
- General use across depots, motor pools, flight lines, and industrial sites
Available From Royco Packaging
Royco Packaging offers ASTM-D-5486 Type IV military duct tape for immediate shipment, supporting both modern and legacy MIL-SPEC packaging programs.
Pair it with:
- MIL-PRF-131 barrier bags
- MIL-PRF-121 laminates
- MIL-D-3464 desiccants
- V3c and W5c Cartons
Speak With a Packaging Specialist
For bulk pricing, case quantities, or specification support, call 1-877-MIL-SPEC. Our packaging experts will help you choose the right military-grade tape for your mission.
Royco Packaging — Mission Critical Protection.
