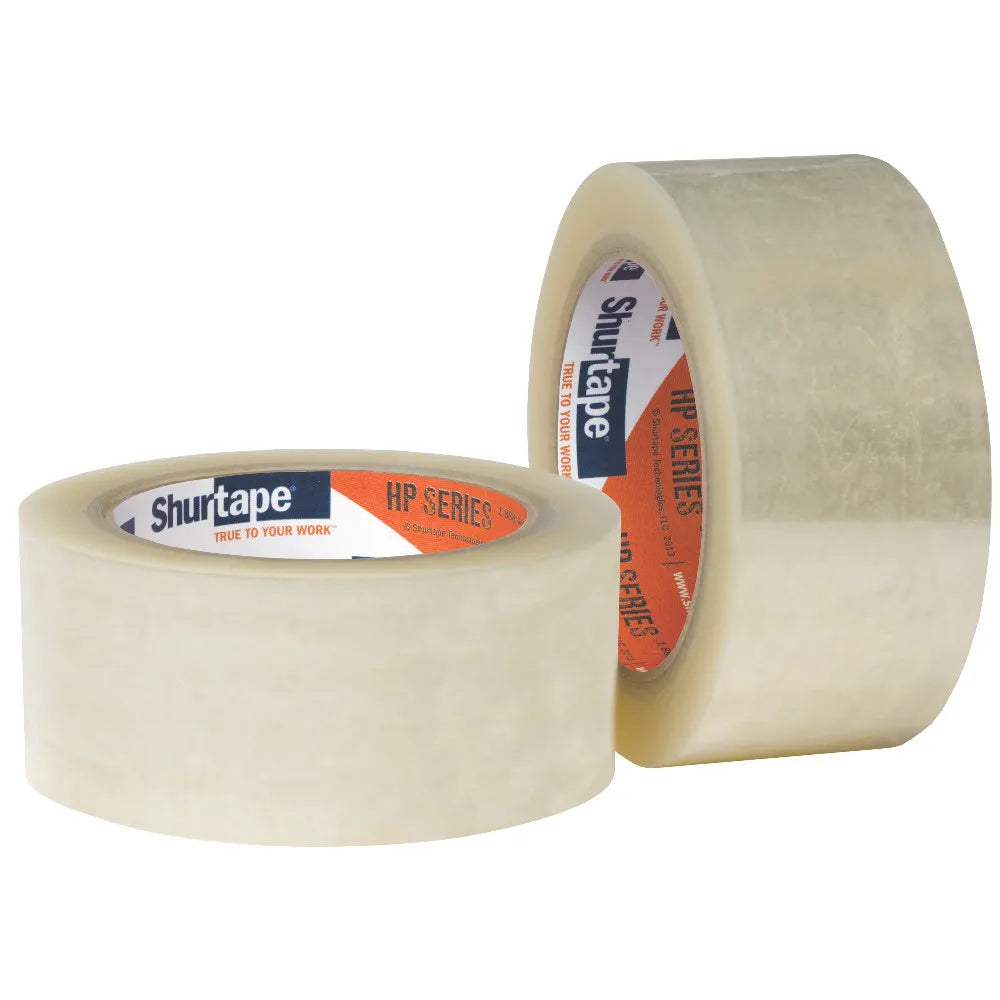

Heavy-Duty Waterproof Packaging Tape | ASTM-D-5486 Type III

ASTM-D-5486, Type III - Heavy Duty Grade Hot Melt Packaging Tape is a premium, waterproof, high-strength carton-sealing tape that replaces the canceled government specification PPP-T-60E (Type 3). Engineered for high-stress, heavy-duty packaging, HP-500 delivers fast tack, aggressive bonding, and a long-lasting, permanent seal on a wide range of surfaces.

Royco Packaging stocks 2" and 3" wide × 55-yard rolls for immediate shipment, making it an ideal choice for military replacement requirements, industrial shippers, warehouses, and export packers.

National Stock Number: 7510-01-514-1701
Sold by the case only.

Federal Specification PPP-T-60E (Nov. 6, 1986) was officially canceled in 1995, and items formerly procured under this spec are now purchased under ASTM Standard Specification D 5486, Type III.

Built on a 50-micron cast biaxially oriented polypropylene (BOPP) backing, this tape uses a high-performance synthetic rubber/resin hot melt adhesive that provides an instant, permanent bond—even on over-stuffed, under-filled, or heavily loaded cartons.

Its special release coating ensures smooth, low-force unwind for fast application in both manual and automated sealing systems.

Key Features & Benefits

• Heavy-duty, waterproof carton-sealing tape
• Aggressive quick-stick and high holding power
• Permanent bond to a wide range of surfaces
• Excellent for extreme handling and high-stress loads
• Smooth, consistent unwind with Good to the Core® release coating
• Suitable for manual or automated application
• Meets:
  • ASTM-D-5486M-12, Type III
  • CID A-A-1684C
  • ASTM D1974/D1974M-16
  • FDA Indirect Food Contact (21 CFR 175.105)

Technical Specifications (typical values)

• Total Thickness: 3.0 mil (0.076 mm)
• Tensile Strength:
  • MD: 42 lbs/in
  • TD: 74 lbs/in
• Elongation: 150%
• Adhesion to Stainless Steel: 58 oz/in
• Adhesion to Backing: 6 oz/in
• Application Temperature: 35°F to 110°F (2°C to 43°C)
• Service Temperature: −20°F to 150°F (−29°C to 66°C)
• Holding Power to Fiberboard: 45,000 minutes

Standard Roll Sizes

• Widths: 2 in (1.88"), 3 in (2.83")
• Length: 55 yards (54.6 yd standard)
• Core Size: 3"

Sold by the case. Bulk quantities available upon request.

Typical Applications

• Sealing heavy, bulky, or over-filled cartons
• Export packaging & long-distance freight
• Industrial, manufacturing, warehouse shipping
• Rugged MIL-SPEC and commercial packaging programs
• High-stress or extreme-handling distribution environments

Available From Royco Packaging

Royco Packaging stocks ASTM-D-5486 Type III waterproof packaging tape for immediate delivery in standard 2" and 3" widths.

Perfect for pairing with:

• MIL-PRF-131 barrier materials
• MIL-PRF-121 barrier kraft
• Fiberboard cartons, edge protectors, and strapping
• Desiccants and preservation kits

Speak With a Packaging Specialist

For pricing, case quantities, or integration into MIL-SPEC or heavy-duty commercial packaging systems, call 1-877-MIL-SPEC. Royco’s experts will help you select the right sealing tape for your mission.

Royco Packaging — Mission Critical Protection. Made in the USA.
