MIL-PRF-22019 Type I VCI Barrier Film

Designed to meet the demanding requirements of MIL-PRF-22019 Type I, CadPak VCI/Ferro Film XP provides a durable moisture barrier, strong mechanical performance, and active VCI corrosion suppression. Its multilayer structure—OPP / PE / VCI sealant—combines optical clarity, strength, and proven vapor inhibitor chemistry for long-term protection of ferrous metal components.

VCI molecules embedded in the sealant layer volatilize within the package, forming a thin, invisible molecular shield that prevents corrosion caused by humidity, oxygen, and airborne contaminants. This makes the film ideal for wrapping or sealing ferrous parts used in military depots, field operations, export packaging, and industrial storage.

The film’s excellent puncture resistance, tensile strength, and moisture barrier performance make it a dependable choice for rugged packaging environments and multi-layer MIL-SPEC preservation systems.

Typical Properties

• Manufacturer: Cadillac Products
• Caliper: 4.5 mil (ASTM D2103)
• Yield: 7,450 in²/lb (Calculated)
• Puncture Resistance: 20 lbs (MIL-STD-3010)
• Tensile Strength: 30 lbs/in MD / 45 lbs/in TD (ASTM D882)
• OTR: 100.0 cc/100 in²/day @ 0% RH, 23°C (ASTM D3985)
• WVTR: 0.19 g/100 in²/day @ 90% RH, 40°C (ASTM F1249)
• Seal Strength: 10 lbs/in (ASTM F88)

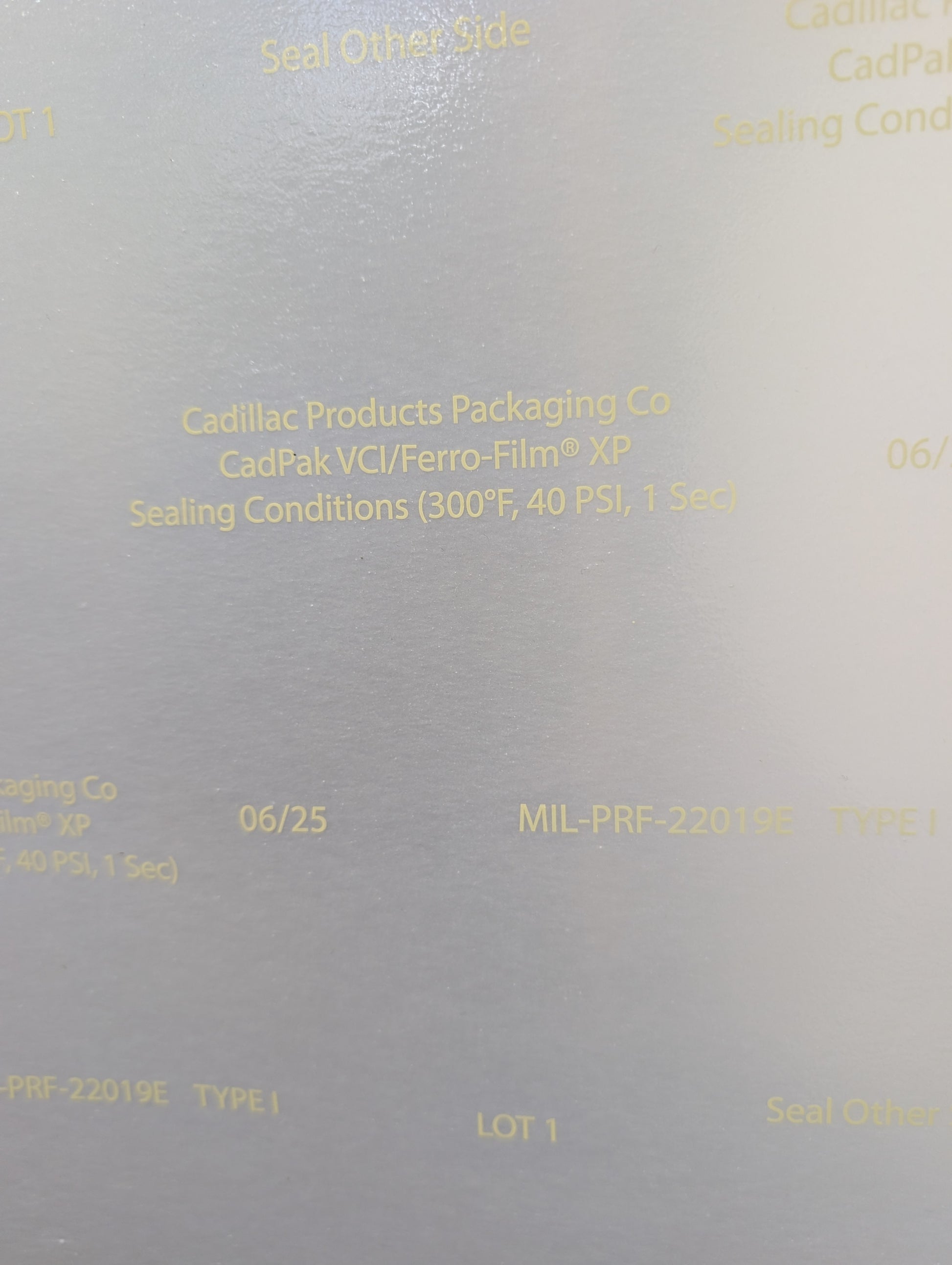

• Suggested Seal Conditions: 300°F, 40 psi, 1.0 sec

Why Choose MIL-PRF-22019 Type I?

• Fully QPL-approved for MIL-PRF-22019E applications
• Active VCI protection for ferrous metals
• Clean, dry, residue-free rust prevention
• Heat-sealable for secure moisture-resistant closures
• Strong puncture resistance and tensile strength
• Suitable for long-term storage, shipment, and export packaging
• Compatible with MIL-SPEC preservation systems, desiccants, and barrier materials

Typical Applications

• Packaging of ferrous metal components and assemblies
• Military depot maintenance and long-term storage
• Export and field-ready preservation of steel parts
• Inner wraps in multi-layer MIL-SPEC barrier systems
• Tooling, hardware, and machined part protection

Available From Royco Packaging

Royco Packaging provides MIL-PRF-22019 Type I VCI film in:

• Standard 36" and custom roll widths
• Flat-cut sheets
• Fabricated bags and pouches

Combine CadPak VCI/Ferro Film XP with Royco’s broader preservation lineup:

• MIL-PRF-131 foil barrier laminates
• MIL-PRF-121 kraft/PE barrier papers
• MIL-PRF-3420 VCI kraft papers (Class 1–3)
• MIL-PRF-81705 ESD barrier films
• MIL-D-3464 desiccants and corrosion-control packaging systems

Speak With a Packaging Specialist

For bulk pricing, custom converting, or technical guidance, call 1-877-MIL-SPEC. Our team will help you build the right corrosion-prevention system for your mission.

Royco Packaging — Mission Critical Protection. Made in the USA.
