Versil-Pak 5-2 | Heavy-Duty Waxed Rolls

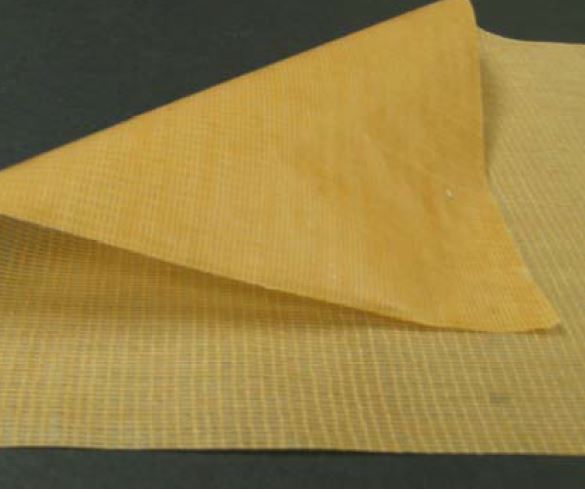

Versil-Pak 5-2 is a high-strength polyester fabric barrier wrap, waxed on both sides and laminated to a polyester film, delivering exceptional waterproof, greaseproof, corrosion-resistant, and abrasion-resistant protection for industrial piping, motors, pumps, and buried equipment. Its rugged construction and strong dielectric properties make it ideal for harsh, corrosive, or underground environments.

This material meets or exceeds the legacy military specification MIL-B-121F, Type I, Grade C, Class 2, which is inactive for new design and maintained only for replacement or sustainment requirements. National Stock Number (NSN): 8135-00-292-9728

Engineered for severe industrial and environmental exposure, Versil-Pak 5-2 combines a polyester high-strength fabric core with two-sided adhesion wax and a polyester barrier film. This structure provides outstanding tensile strength, moldability, and dead-fold, allowing the wrap to conform tightly around irregular shapes—such as joints, threads, straps, valves, weld seams, flanges, and yokes.

The laminated wax system locks out water, soil, contaminants, grease, chemicals, and airborne particulate, while the film layer enhances overall barrier performance. Proven Daubert Cromwell corrosion-inhibitor chemistry adds long-term rust protection, making Versil-Pak 5-2 suitable for buried or exposed applications in oilfield operations, utilities, industrial plants, and military replacement programs.

Versil-Pak 5-2 requires no special handling, is RoHS compliant, and is safe and easy to apply in the field.

Key Features & Benefits

• Meets or exceeds MIL-B-121F Type I Grade C Class 2 (legacy replacement spec)
• NSN: 8135-00-292-9728
• High-strength polyester fabric core for durability and tear resistance
• Two-sided high-adhesion wax forms tight, secure overlap seals
• Waterproof, greaseproof, and chemical-resistant
• Excellent corrosion, abrasion, and impact protection
• Moldable—conforms and holds shape around irregular surfaces
• High dielectric strength for electrical environments
• Barrier to soil, dust, contaminants, and moisture
• Non-Hazardous; RoHS compliant
• Safe, clean, and easy to handle—no special equipment needed

Typical Applications

• Air lines and sprinkler system piping
• Cold-water and gas piping
• Industrial plant piping exposed to corrosive conditions
• Underground piping, pumps, and irregular oilfield components
• Large electric motors and buried machinery
• Equipment requiring strong barrier and dielectric protection
• Wrapping hard-to-reach surfaces: welds, threads, joints, valves, yokes

Technical Properties

• Weight: 0.55 lb/sq yd (200 g/m²)
• Caliper: 14.5 mil (17.9 μm)
• Mullen Burst Strength: 101 psi (206 kPa)
• Elmendorf Tear Strength:
  • MD: >1600 g
  • CD: >1600 g
• Tensile Strength:
  • MD: 28.5 lb/in
  • CD: 22.5 lb/in
• Adhesion: 34 lbs (MD) / 32 lbs (CD)
• Shelf Life: 5 years (properly stored)

Standard Roll Sizes

• 36" x 100 yards


Available From Royco Packaging

Royco Packaging supplies Versil-Pak 5-2 in standard roll sizes for immediate shipment—ideal for maintenance depots, industrial plants, utilities, and oilfield operations requiring replacement-spec MIL-B-121F barrier wraps.

Pair with Royco’s complete preservation materials:

• MIL-PRF-131 foil barrier materials
• MIL-PRF-121 kraft/poly laminates
• MIL-PRF-3420 VCI kraft papers
• MIL-PRF-81705 ESD barrier films
• MIL-D-3464 desiccants and moisture-control systems

Speak With a Packaging Specialist

For bulk pricing, custom converting, or help matching legacy MIL-B-121 replacement materials, call 1-877-MIL-SPEC. Our experts will guide you to the correct barrier wrap for your mission.

Royco Packaging — Mission Critical Protection. Made in the USA.
